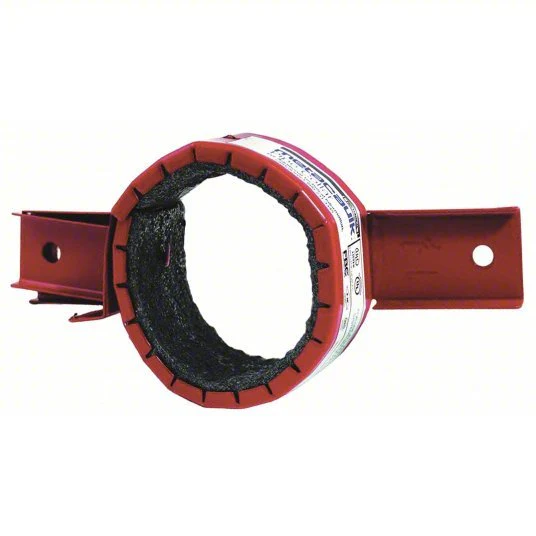

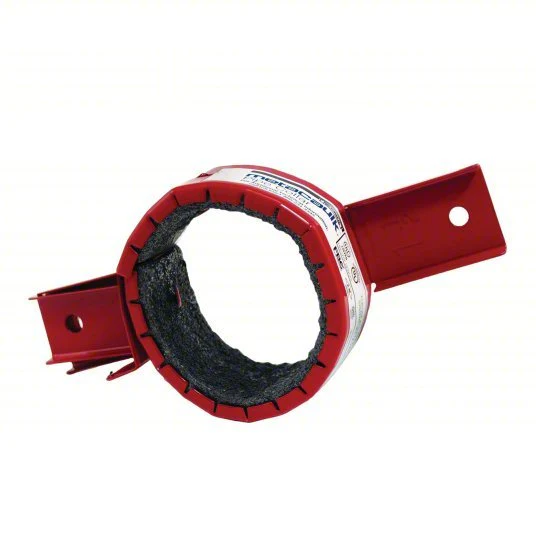

Metacaulk Pipe Collars

Metacaulk Pipe Collars are prefabricated firestop devices designed for open and closed through-penetration firestop systems using 1-1/2 to 6 inch (38–152 mm) plastic pipes. They provide reliable fire protection by sealing plastic pipe penetrations in fire-rated assemblies and helping prevent the spread of flames, smoke, and heat.

Designed for both closed and vented (DWV) pipe conditions, Metacaulk Pipe Collars feature an easy lock mechanism for fast installation. The efficient collar design helps reduce installation time and labor costs compared to traditional firestop collar systems.

Key Features

• Prefabricated firestop collar for plastic pipe penetrations.

• Designed for 1-1/2 to 6 inch (38–152 mm) plastic pipes.

• Suitable for both open and closed through-penetration firestop systems.

• Compatible with closed and vented (DWV) pipe conditions.

• Easy lock mechanism provides quick and secure installation.

• Reduces installation time by up to 25%.

• No measurement of material required.

• Highly intumescent material expands during fire exposure.

• Tested for PVC, CPVC, ABS, PVC/ABS Foam Core, FRPP, and PP pipe.

• UL classified for open and closed pipe systems.

• FBC System Compatible.

• Fits in limited access areas.

• Economical installation solution that helps reduce labor costs.

Common Applications

• Plastic pipe penetrations.

• PVC pipe systems.

• CPVC pipe systems.

• ABS pipe systems.

• PVC/ABS Foam Core pipe systems.

• FRPP pipe systems.

• PP pipe systems.

• PEX pipe applications.

• Electrical cable penetrations.

• Closed pipe conditions.

• Vented DWV systems.

• Concrete floor assemblies.

• Concrete wall assemblies.

• Gypsum wall assemblies.

• Wood floor assemblies.

Ideal For

• Commercial construction projects.

• Plumbing penetrations.

• Fire-rated wall systems.

• Fire-rated floor systems.

• Plastic pipe firestop applications.

• Projects requiring efficient installation in limited access areas.

Key Benefits

Reliable Fire Protection

Metacaulk Pipe Collars expand during fire exposure to help seal plastic pipe penetrations and maintain the integrity of fire-rated assemblies.

Fast Installation

The prefabricated design and easy lock mechanism simplify installation while reducing labor time compared to conventional collar systems.

Versatile Compatibility

Designed for use with multiple approved plastic pipe materials, including PVC, CPVC, ABS, PVC/ABS Foam Core, FRPP, PP, and PEX applications.

Cost-Effective Solution

The collar system eliminates material measurement and helps reduce installation costs while providing dependable firestop protection.

How to Use

Surface Preparation

• Ensure the pipe penetration area is clean and free from dust, debris, and loose materials.

• Verify pipe size, material, and assembly requirements match the approved firestop system.

• Confirm compatibility with the rated wall or floor assembly.

Application Instructions

1. Select the correct Metacaulk Pipe Collar size for the pipe diameter.

2. Install the collar around the plastic pipe penetration.

3. Secure the collar using the integrated locking mechanism.

4. Verify the collar is properly positioned according to the tested firestop system.

5. Confirm the installation meets applicable firestop requirements.

Important Notes

• Install only according to tested and approved firestop systems.

• Follow manufacturer installation instructions and applicable building codes.

• Not intended for environments with long-term exposure to rainfall or saltwater spray.

• Verify compatibility with the specific pipe type and rated assembly.

Product Information

Property	Description
Brand	Metacaulk
Product Type	Prefabricated intumescent pipe collar
Color	Red
Application	Plastic pipe through-penetration firestop systems
Compatible Pipe Materials	PVC, CPVC, ABS, PVC/ABS Foam Core, FRPP, PP, PEX
Pipe Size Range	1-1/2 to 6 inches (38–152 mm)
Pipe Conditions	Closed and vented (DWV) systems
Rated Assemblies	Up to 3-hour concrete floors and walls, up to 2-hour gypsum walls, up to 2-hour wood floors
Installation Feature	Easy lock mechanism
Classification	UL classified for open and closed pipe systems
Compatibility	FBC System Compatible
Case Weight	2.56 lbs
Case Dimensions	Height: 2.50 in × Length: 6.00 in × Width: 16.00 in
UPC	021449663502
Interleaved	10021449663509

Frequently Asked Questions (FAQ)

Q1. What are Metacaulk Pipe Collars used for?
Metacaulk Pipe Collars are used to seal plastic pipe penetrations in fire-rated assemblies and help maintain firestop protection.

Q2. Can Metacaulk Pipe Collars be used for both closed and vented pipe conditions?
Yes. They are designed for use with both closed and vented (DWV) plastic pipe conditions.

Q3. What types of pipes can Metacaulk Pipe Collars protect?
They are designed for approved plastic pipe penetrations, including PVC, CPVC, ABS, PVC/ABS Foam Core, FRPP, PP, and PEX applications.

Q4. How do Metacaulk Pipe Collars provide fire protection?
The intumescent material expands during fire exposure to help seal pipe openings and limit the spread of flames, smoke, and heat.

Q5. Where are Metacaulk Pipe Collars installed?
They are installed around plastic pipe penetrations in approved fire-rated concrete floors, walls, gypsum walls, and wood floor assemblies.
