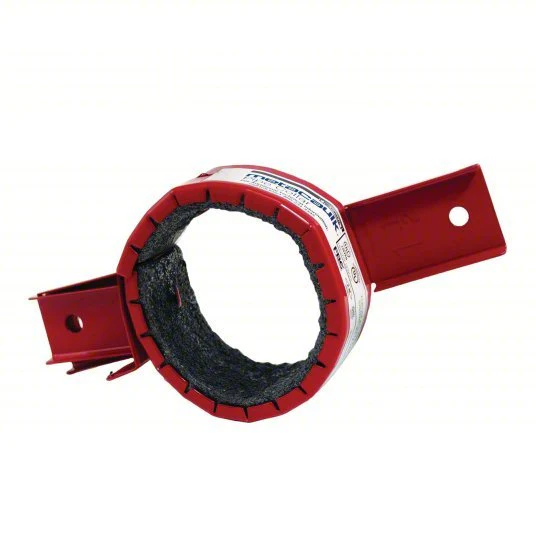

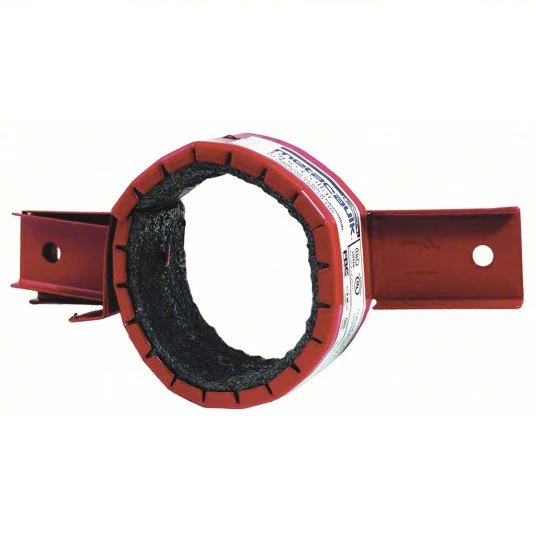

Metacaulk Pipe Collars

Metacaulk Pipe Collars are prefabricated firestop devices designed for open and closed through-penetration firestop systems using 1-1/2 to 6 inch (38–152 mm) plastic pipes. They provide dependable fire protection by helping seal plastic pipe penetrations and limit the spread of flames, smoke, and heat through fire-rated assemblies.

Featuring an easy lock mechanism and an efficient collar design, Metacaulk Pipe Collars simplify installation while reducing labor time and costs compared to traditional collar systems. They are designed for use with approved plastic pipe applications in fire-rated walls and floors.

Key Features

• Prefabricated firestop collar for plastic pipe penetrations.

• Designed for 1-1/2 to 6 inch (38–152 mm) plastic pipes.

• Suitable for open and closed through-penetration firestop systems.

• Easy lock mechanism provides quick and secure installation.

• Reduces installation time by up to 25%.

• No measurement of material required.

• Highly intumescent material expands during fire exposure.

• Tested for PVC, CPVC, ABS, PVC/ABS Foam Core, FRPP, and PP pipe.

• UL classified for both open and closed pipe systems.

• FBC System Compatible.

• Fits in limited access areas.

• Economical solution that helps reduce labor costs.

Common Applications

• Plastic pipe penetrations.

• PVC pipe systems.

• CPVC pipe systems.

• ABS pipe systems.

• PVC/ABS Foam Core pipe systems.

• FRPP pipe systems.

• PP pipe systems.

• PEX pipe applications.

• Electrical cable penetrations.

• Closed pipe conditions.

• Vented DWV (drain, waste, and vent) systems.

• Fire-rated concrete floors and walls.

• Fire-rated gypsum wall assemblies.

• Fire-rated wood floor assemblies.

Ideal For

• Commercial construction projects.

• Plumbing installations.

• Fire-rated wall penetrations.

• Fire-rated floor penetrations.

• Plastic pipe firestop applications.

• Projects requiring quick installation in limited access areas.

Key Benefits

Reliable Fire Protection

Metacaulk Pipe Collars expand when exposed to fire to help seal plastic pipe penetrations and maintain the integrity of fire-rated assemblies.

Easy Installation

The prefabricated design and easy lock mechanism allow for faster installation while reducing labor requirements.

Versatile Compatibility

Designed for use with multiple plastic pipe materials, including PVC, CPVC, ABS, PVC/ABS Foam Core, FRPP, PP, and approved PEX applications.

Cost-Effective Performance

The collar design reduces installation time and eliminates material measurement, helping lower overall installation costs.

How to Use

Surface Preparation

• Ensure the pipe penetration area is clean and free of dust, debris, and loose materials.

• Verify pipe type, size, and firestop system requirements before installation.

• Confirm compatibility with the rated wall or floor assembly.

Application Instructions

1. Select the correct Metacaulk Pipe Collar size for the pipe diameter.

2. Place the collar around the plastic pipe penetration.

3. Secure the collar using the built-in locking mechanism.

4. Ensure proper positioning according to the approved firestop system.

5. Verify installation meets applicable firestop requirements.

Important Notes

• Install only according to tested and approved firestop systems.

• Follow manufacturer installation instructions and applicable building codes.

• Not intended for environments with long-term exposure to rainfall or saltwater spray.

• Verify compatibility with the specific pipe type and rated assembly.

Product Information

Property	Description
Brand	Metacaulk
Product Type	Prefabricated intumescent pipe collar
Color	Red
Application	Plastic pipe through-penetration firestop systems
Compatible Pipe Materials	PVC, CPVC, ABS, PVC/ABS Foam Core, FRPP, PP, PEX
Pipe Size Range	1-1/2 to 6 inches (38–152 mm)
Pipe Conditions	Open and closed through-penetration systems
Rated Assemblies	Up to 3-hour concrete floors and walls, up to 2-hour gypsum walls, and up to 2-hour wood floors
Installation Feature	Easy lock mechanism
Classification	UL classified for open and closed pipe systems
Compatibility	FBC System Compatible
Case Weight	3.08 lbs
Case Dimensions	Height: 2.50 in × Length: 7.50 in × Width: 13.25 in
UPC	021449663533
Interleaved	10021449663530

Frequently Asked Questions (FAQ)

Q1. What are Metacaulk Pipe Collars used for?
Metacaulk Pipe Collars are used to seal plastic pipe penetrations in fire-rated assemblies and help maintain firestop protection.

Q2. Can Metacaulk Pipe Collars be used for both open and closed pipe systems?
Yes. They are designed for use in both open and closed through-penetration firestop systems.

Q3. What types of pipes can Metacaulk Pipe Collars protect?
They are designed for approved plastic pipe penetrations, including PVC, CPVC, ABS, PVC/ABS Foam Core, FRPP, PP, and PEX applications.

Q4. How do Metacaulk Pipe Collars provide fire protection?
The highly intumescent material expands during fire exposure to help seal plastic pipe openings and limit the spread of flames, smoke, and heat.

Q5. Where are Metacaulk Pipe Collars installed?
They are installed around plastic pipe penetrations in approved fire-rated concrete floors, walls, gypsum walls, and wood floor assemblies.
