Product Description

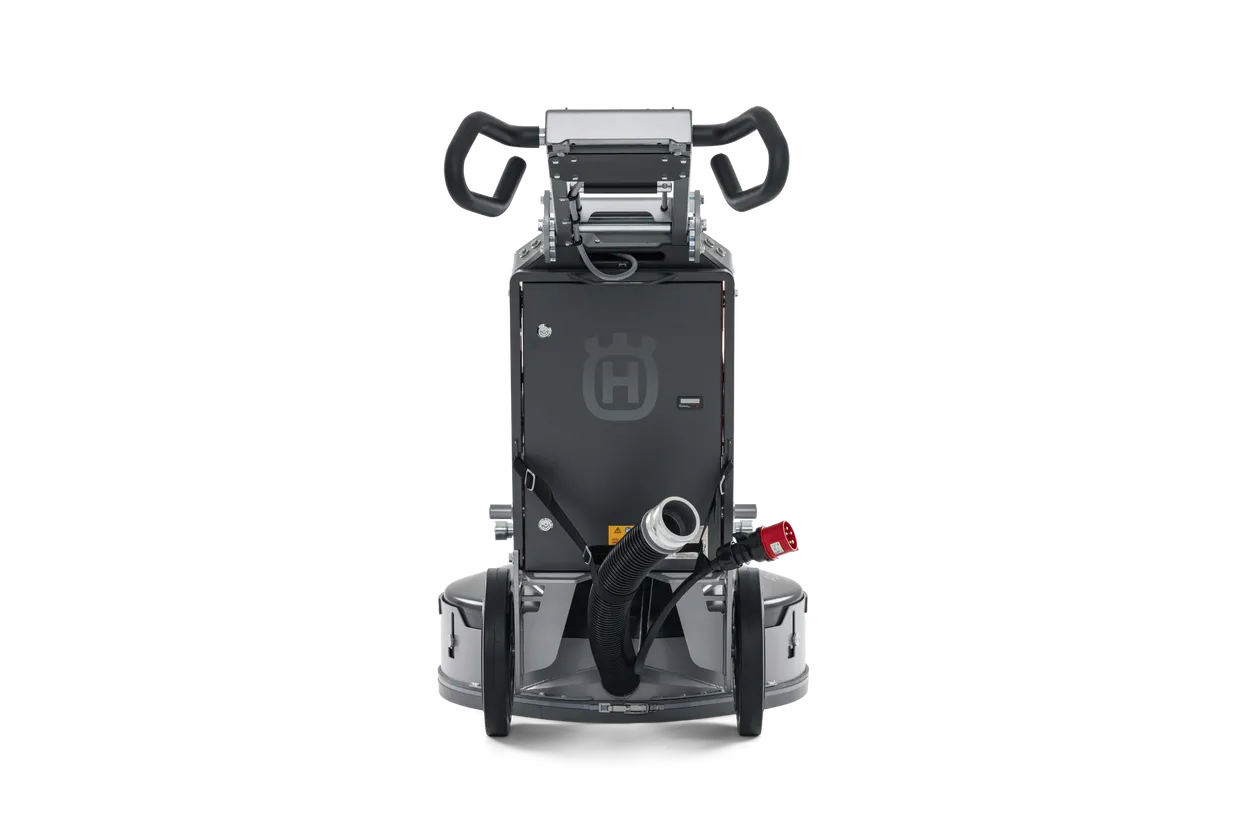

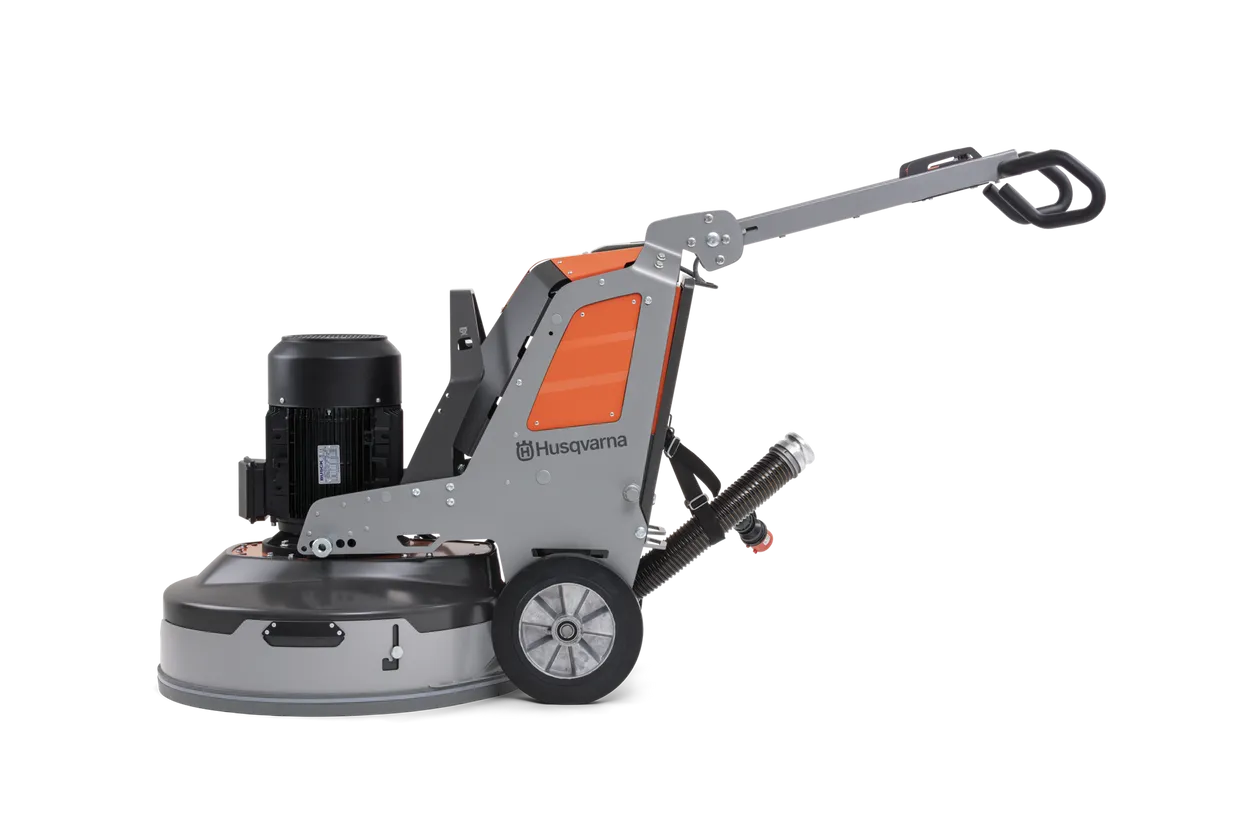

The PG 8 S is a powerful and robust planetary floor grinder with a focus on simplicity. This is a good choice for grinding and polishing jobs, and for users who prefer a non-motorised drive. Easy to use, the PG 8 S has a large capacity thanks to the 32 in / 800 mm grinding width and powerful motor. Adjustable weights for extra grinding pressure are optional.

The hermetically sealed design of the grinding head and electrical cabinet, along with the robustness of the components, contributes to high reliability and low maintenance.

Optional: Weights, water kit

Tool holder: EZchange™

Features

• Sealed to last
• Protected electronics
• Improved dust pick-up
• Ergonomic handle
• Time saving tool change
• Adjustable grinding pressure
• Fleet ready
• Quick release of tool holders
• EZchange™ Airflow tool holders

Specifications

Engine
Engine Power (As rated by the engine manufacturer)	14.8 hp
Motor
Power source	Corded
Rated input power	14.8 hp
Phases	3 ph
Voltage	200-240 V / 440-480 V
Rated current	50 A / 30 A
Frequency	50-60 Hz
Pins	3P+E
Equipment
Grinding width	31.5 in

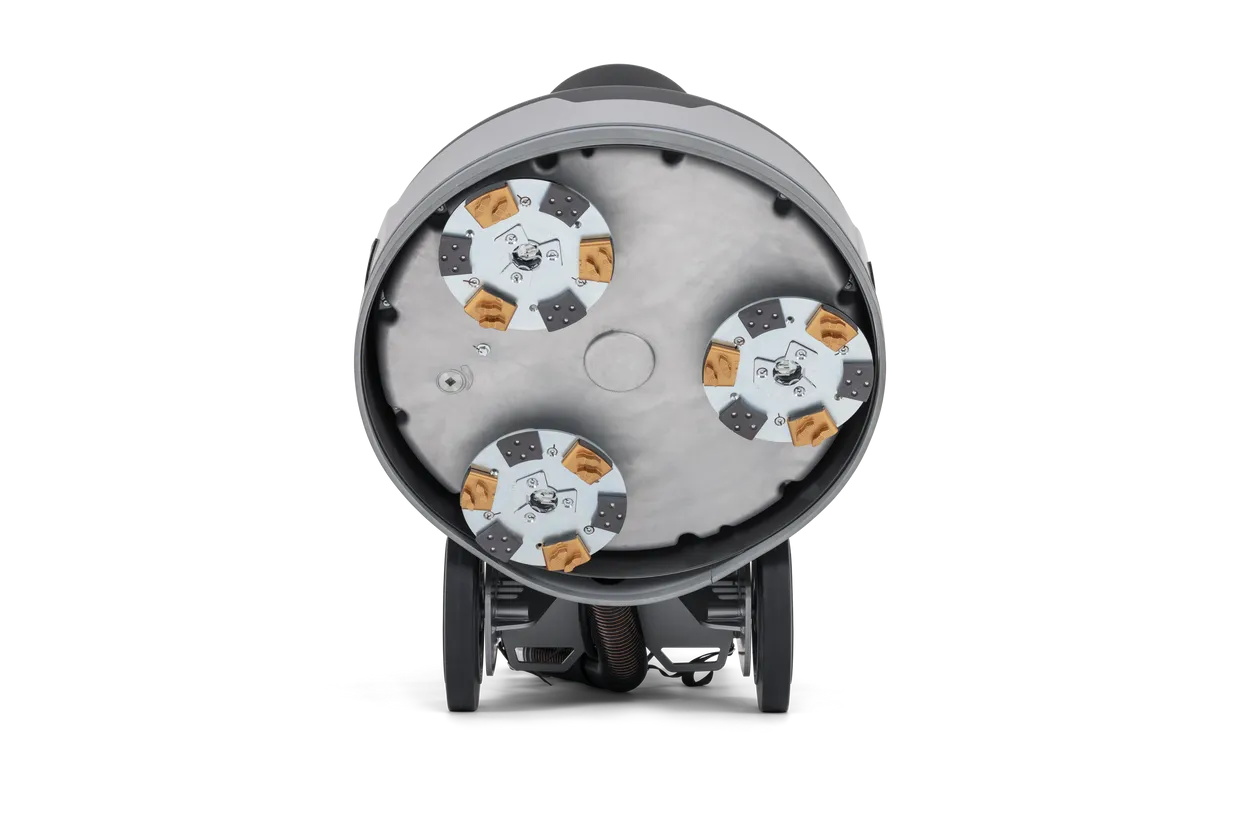

Number of grinding discs	3
Direction of rotation	Both directions
Grinding disc diameter	9.1 in
Grinding disc speed min	420 rpm
Grinding disc speed max	1,176 rpm
Transmission
Type of operation	Push
Dimensions
Product size length	54.6 in
Product size width	33 in
Product size height	44.7 in
Weight	1,120 lbs
Packaging length (Calc)	55.118 in
Packaging width (Calc)	35.433 in
Packaging height (Calc)	57.874 in
Article gross weight (Calc)	1,007.513 lbs
