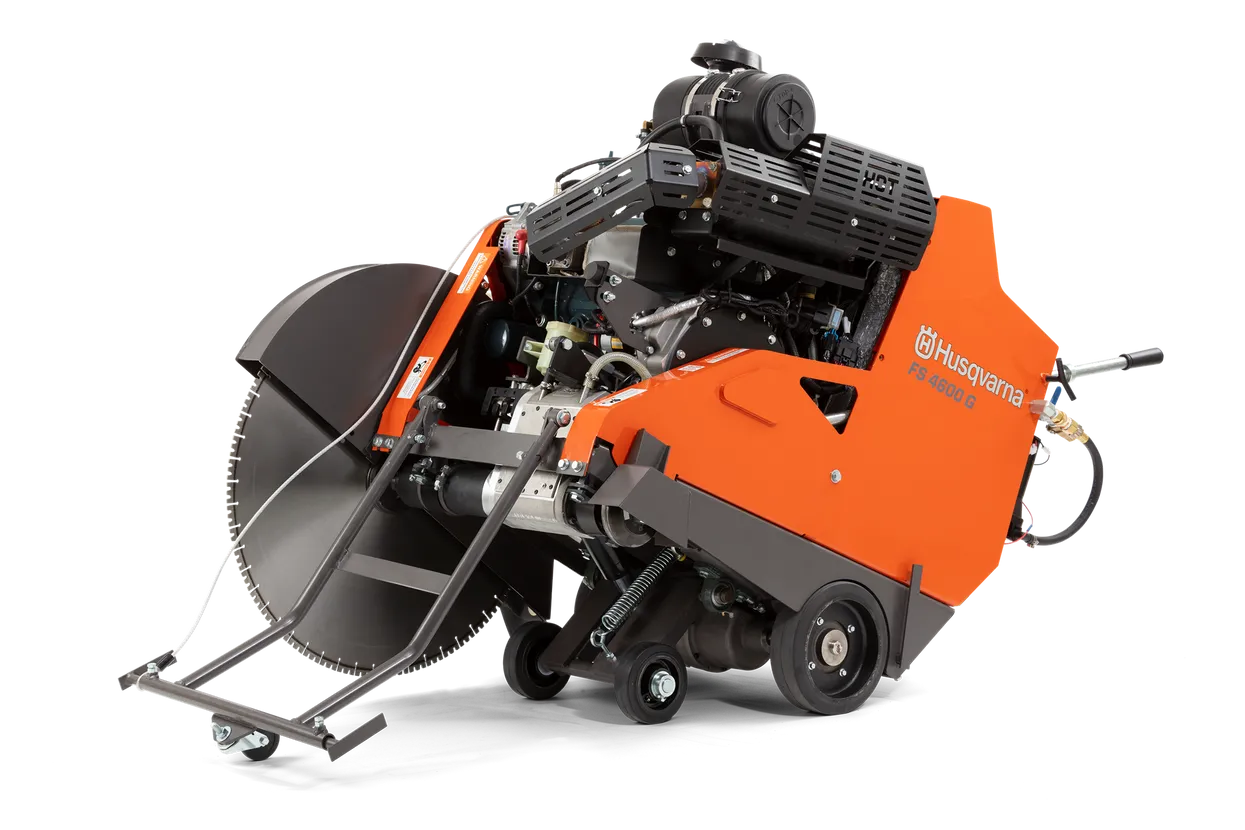

Rear Pivot Saw: Easy Maneuverability for Multiple Direction Changes

This rear pivot saw is easy to maneuver when making multiple direction changes on the job. The 3-speed gearbox enhances efficiency by enabling different diameter blades to operate at their ideal performance level.

Features

• Max Cutting Depth: 12.5 in
• Output Power: 49.6 hp
• Max Blade Diameter: 30 in

Specifications

Motor/engine manufacturer	Kubota
Engine Power (As rated by the engine manufacturer)	49.6 hp
Engine cooling	Water
Number of strokes	4-stroke engine
Exhaust emissions (CO₂ EU V)	1,090 g/kWh
Cylinders	4
Power source	Petrol
Cutting equipment
Cutting depth, max	12.5 in / 10.5 in
Blade diameter, max	30 in / 26 in
Arbor diameter	1"
Blade depth control	Electric hydraulic
Transmission
Transmission speed forward	196 fpm
Transmission speed reverse	196 fpm
Output shaft RPM, Speed 1	1,330 rpm
Output shaft RPM, Speed 2	2,000 rpm
Output shaft RPM, Speed 3	3,000 rpm
Dimensions
Product size length	66 in
Product size width	33.6 in
Product size height	50 in
Weight	1,212 lbs
Packaging length (Calc)	70 in
Packaging width (Calc)	42.992 in
Packaging height (Calc)	55 in / 55.984 in
Article gross weight (Calc)	1,324.998 lbs / 1,212.542 lbs
